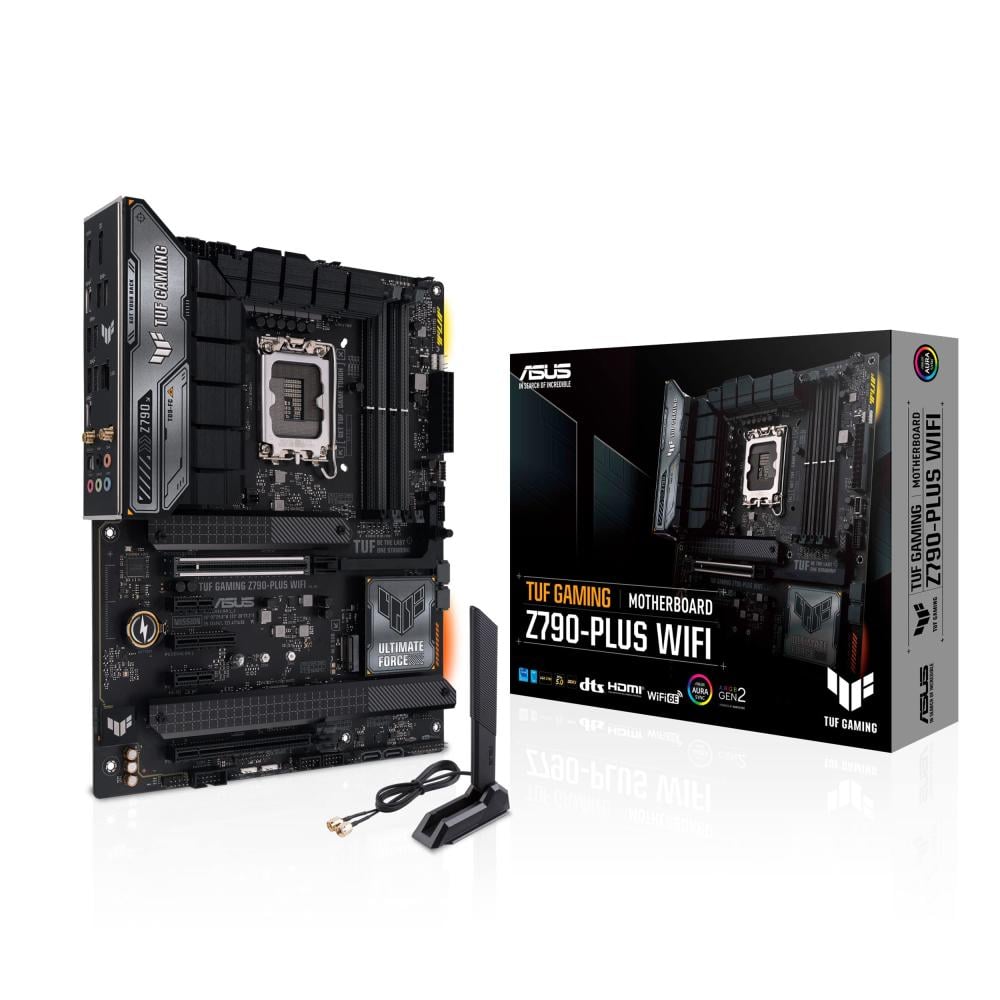

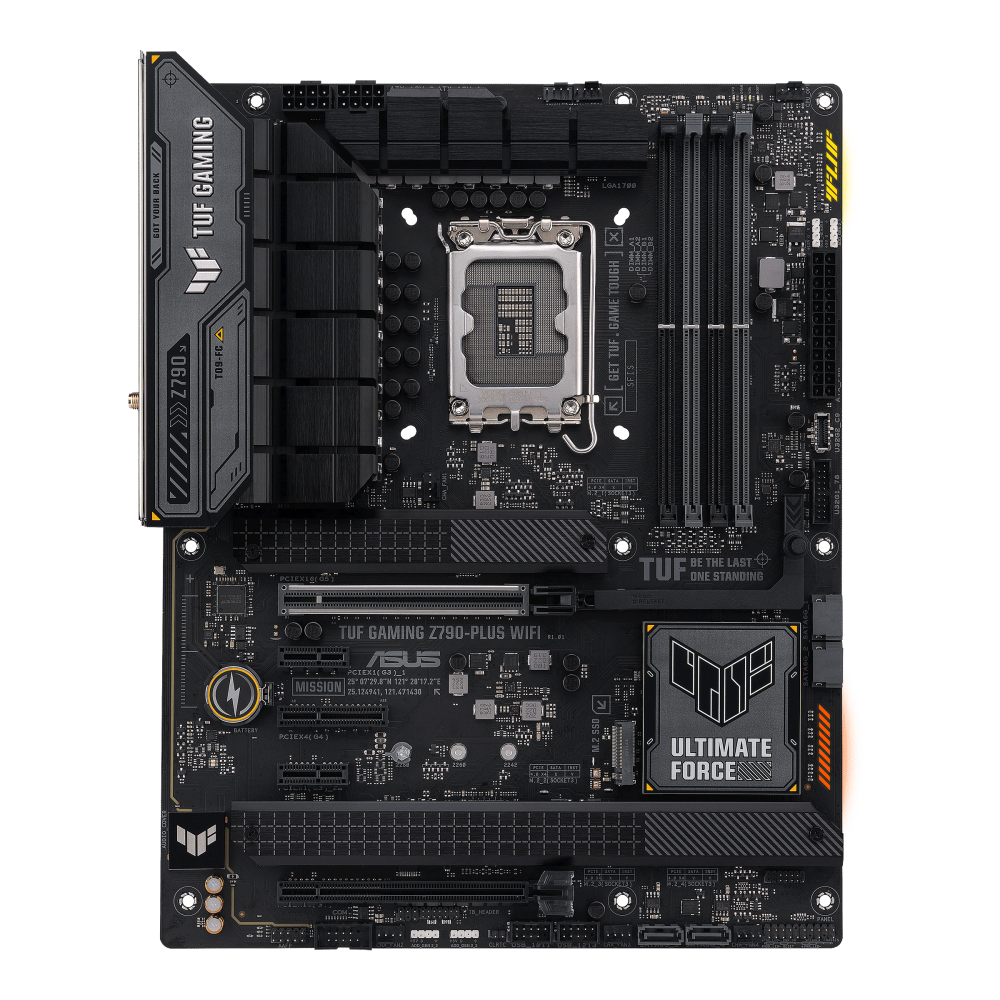

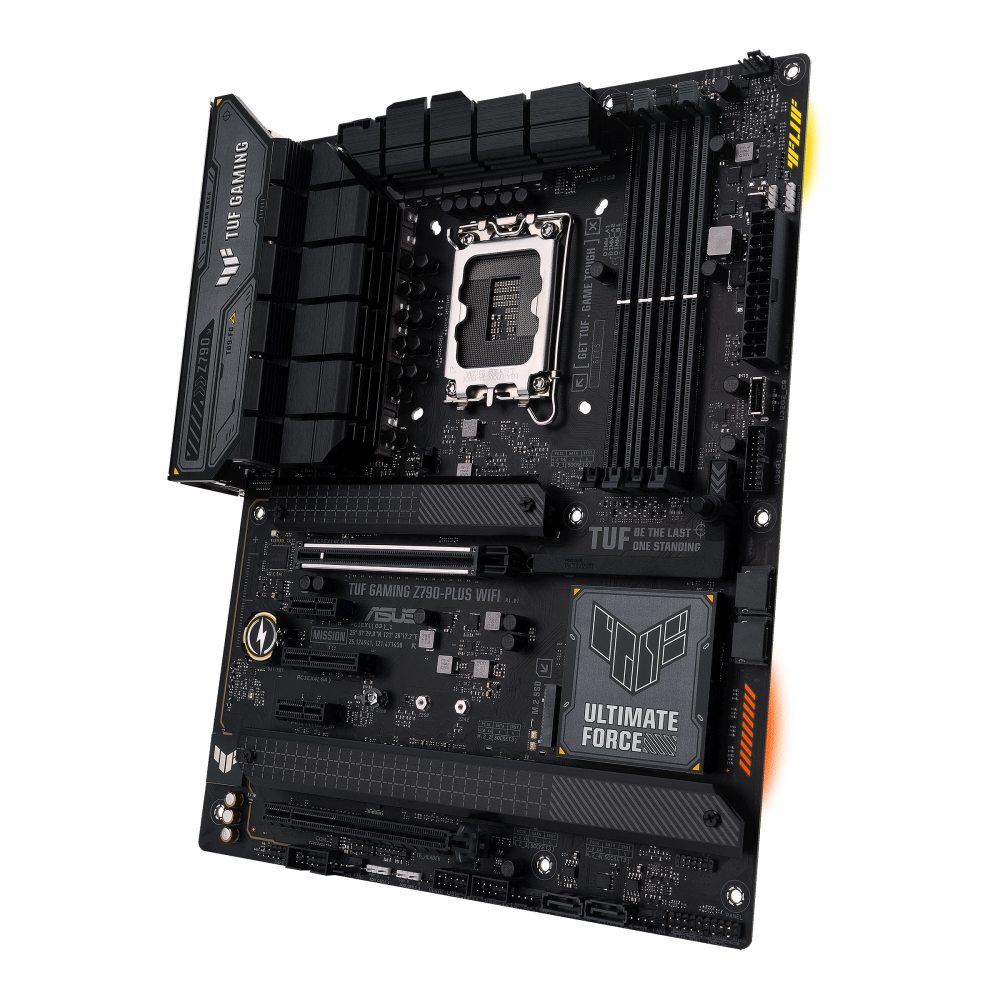

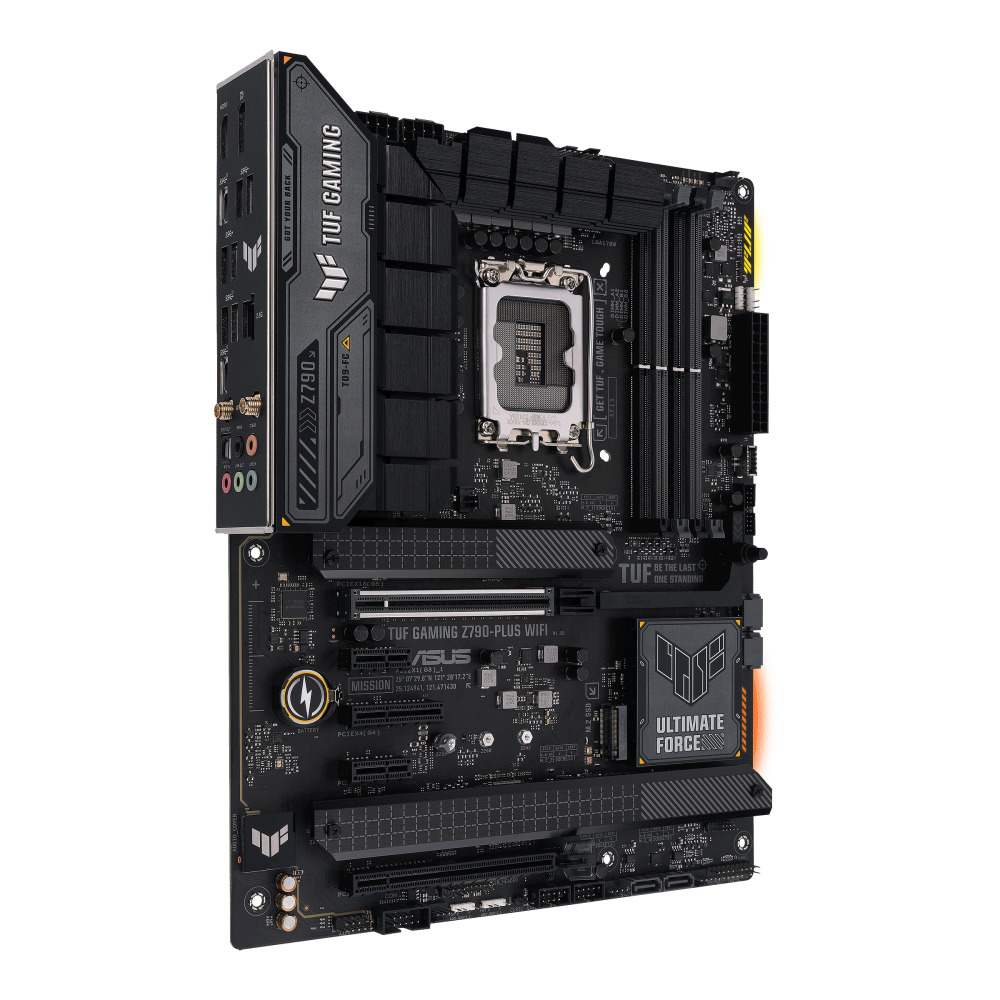

MB ASUS TUF Z790-PLUS GAMING WiFi DDR5 LGA 1700
1,042.61 SAR
The TUF GAMING Z790-PLUS WIFI motherboard combines all the essential elements of the latest Intel® processors with game-ready features and proven reliability. This board is designed with high-quality components, upgraded power solutions, and a comprehensive cooling system, ensuring powerful performance for marathon gaming sessions. TUF GAMING motherboards undergo rigorous endurance testing to guarantee their capability to handle conditions where other boards might fail. Aesthetically, this model features an embossed nameplate and geometric design elements that reflect the reliability and stability characteristic of the TUF GAMING series.
Key Features:
- 16(60A)+1(60A)+1 Power Stages: With enlarged VRM heatsinks for stable performance.
- PCIe® 5.0 Support: Supports the latest graphics cards.
- Memory Support up to 7200+ MT/s: Using AEMP II.
- Advanced Connectivity: USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header.
- PC DIY Friendly: PCIe Q-Release system.
- Fast Ethernet Connectivity: 2.5 Gb Ethernet.
- WiFi 6E: For a faster and more stable internet experience.
- AI Cooling II: For automatic and efficient cooling.
- AI Noise Cancellation: For a pure audio experience.
Technical Specifications:
- Model: TUF GAMING Z790-PLUS WIFI
- Processor: Supports Intel® Socket LGA1700 for 13th and 14th Gen processors, Intel® Core™ 12th Gen processors, Pentium® Gold, and Celeron® processors.
- Chipset: Intel® Z790 Chipset.
- Memory: 4 x DIMM, Maximum 128GB, DDR5 with speeds up to 7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600/5400/5200/5000/4800.
- Expansion Slots:
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 2 x PCIe 3.0 x1 slots
- Storage: Supports a total of 4 x M.2 slots and 4 x SATA 6Gb/s ports.
- Wired Connection: 1 x Intel® 2.5Gb Ethernet with TUF LANGuard.
- Wireless Connection: Wi-Fi 6E and Bluetooth® v5.3.
- USB:
- Rear: Total of 8 USB ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- Front: Total of 7 USB ports
- 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supporting 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers supporting an additional 4 USB 2.0 ports
- Audio: Realtek S1220A with 7.1 Surround Sound.
- Impedance sensing for front and rear headphone outputs
- Internal amplifier to enhance sound quality for headphones and speakers
- Supports: Jack detection, Multi-streaming, Front Panel Jack retasking
- High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback.
Special Features:
- ASUS TUF PROTECTION: Comprehensive protection for board components.
- ASUS Q-Design: Easy installation design.
- ASUS Thermal Solutions: M.2 heatsink and advanced VRM cooling system.
- ASUS Exclusive Software: Armoury Crate, AI Suite 3, and more.
Accessories:
- Cables: 2 x SATA 6Gb/s cables.
- Documentation: User guide, TUF certification card, and more.
Operating System:
Supports Windows® 11 and Windows® 10 64-bit.
Form Factor:
ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm).
